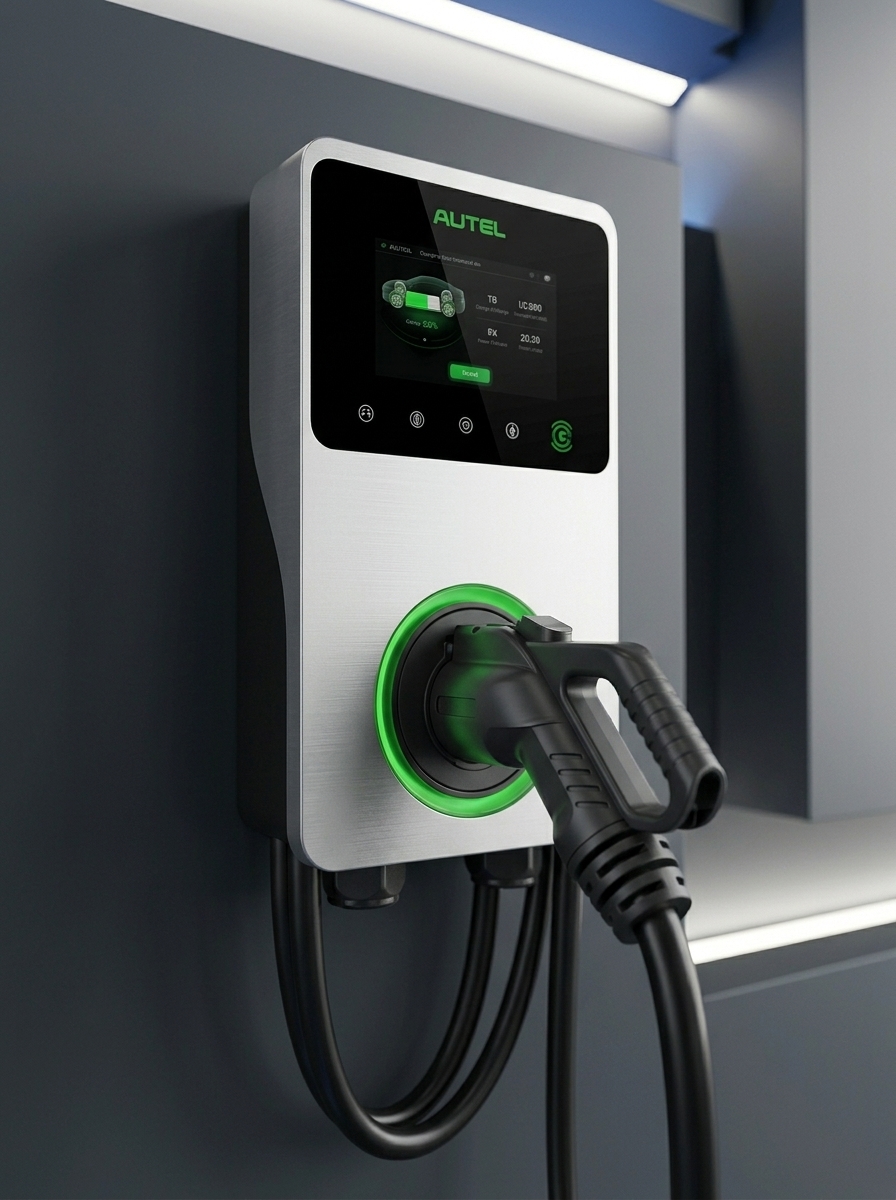

The Autel MaxiCharger AC Pro is EV Nook’s premium upgrade option — chosen for residents who want the fastest possible overnight charge and a charger that will stay relevant for years to come. At up to 19.2 kW and 80A, it can add roughly 110 km of range per hour, making it ideal for long-range EVs, high-mileage drivers, or anyone who wants their vehicle fully charged every single morning regardless of when they plugged in.
Where the Autel MaxiCharger AC Pro stands apart is in its build quality and future-proofing. Its 7″ HD touchscreen runs on Android, RFID and app activation are both supported, and its NEMA 4X and IK10-rated enclosure exceeds the weatherproofing and impact resistance of standard commercial chargers. Over-the-air firmware updates mean it evolves with EV standards over time — and a 5-year warranty backs it all up. It integrates fully with EVEMS for load management, per-session billing, and remote monitoring, same as the standard G2.5.
Specifications
| Maximum Output | 19.2 kW |
| Current | 0.6A – 80A controlled by load management system |
| Voltage | 208-240 V |
| Display | Color 7″ HD touchscreen, LED indicator |
| Number of Ports | One |
| Available Connector Types | SAE J1772 |
| Charging Cable Length | 18 feet |
| Connectivity | Wi-Fi, Bluetooth, 4G, Ethernet, RFID |
| Ingress Protection | NEMA Enclosure Type 4X, IK10 |
| Dimensions | 336mm x 187mm x 85mm (13.2″ x 7.4″ x 3.3″) |
| Activation | EV Nook App / RFID card |
| Operating Temperature | -40°C to 55°C |
| Certifications | UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, OCPP1.6 |
